Bag filter Housings

Universal bag filter vessels suitable for a wide variety of applications.

Single bag filter housing

Casing material

Stainless steel 1.4301/1.4404/Hastelloy C22 etc.
  Einfachbeutelfiltergehäuse
Size
: Filter bag standard sizes 01, 02, 03 and 04

Optional connections
: Thread, flange, Tri-Clamp or dairy screw clamp etc.

Surfaces
passivated, electropolished, glass bead-blasted, ground down to Ra 0.4

Special versions
: with double jacket/Halar coating/on mobile or palletisable chassis/switchable to manual or automatic/with pumps and control/custom-fit for existing piping system

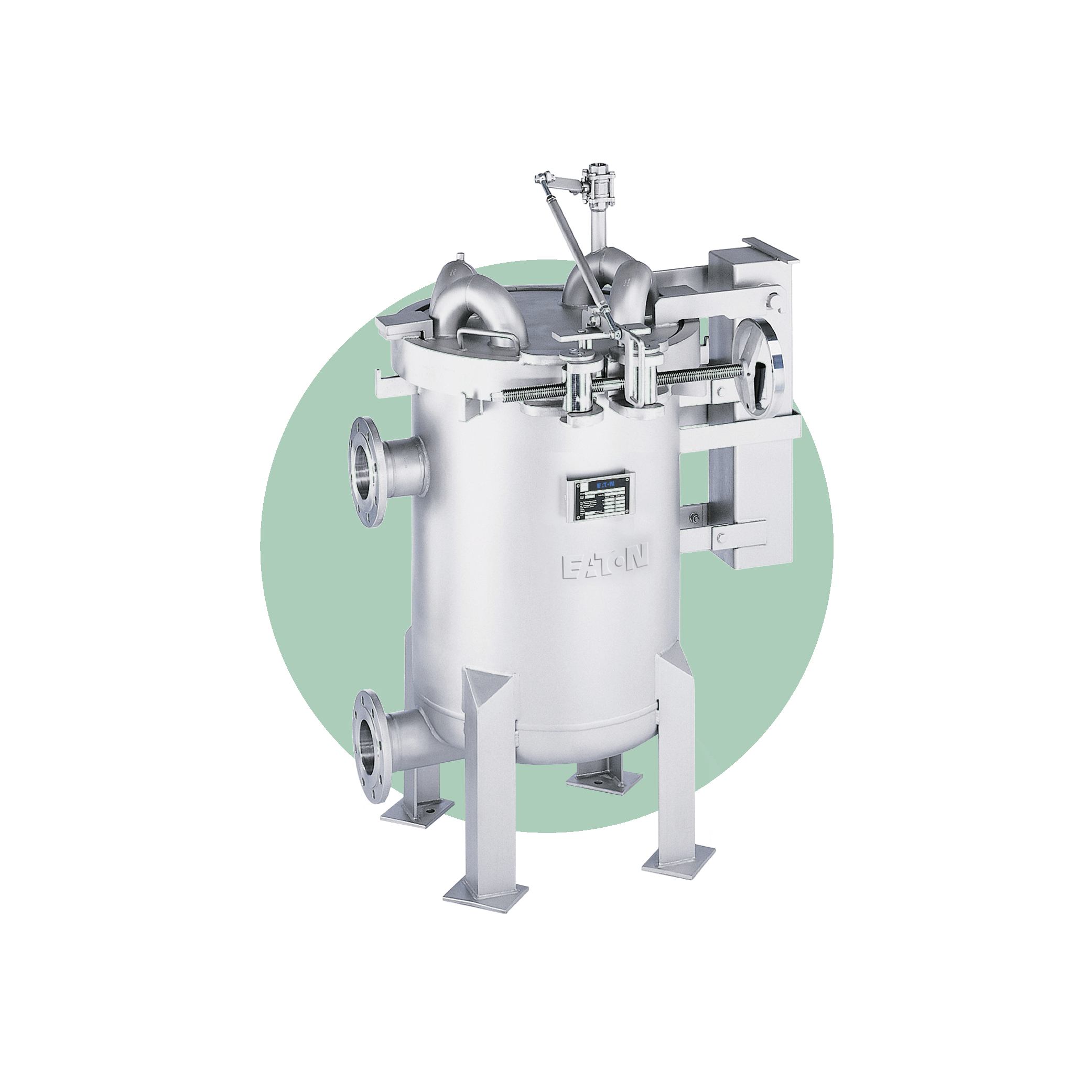

Multiple bag filter housing

Casing material
Stainless steel 1.4301/1.4404/Hastelloy C22 etc,
  Mehrfachbäutelfiltergehäuse

Size
: Filter bag standard sizes 01 and 02

Optional connections
: Flange or dairy screw clamp etc.

Surfaces
with double jacket/Halar coating/cover quick-release closure

Special versions
: with double jacket/Halar coating/on mobile or palletisable chassis/switchable to manual or automatic/with pumps and control/custom-fit for existing piping system

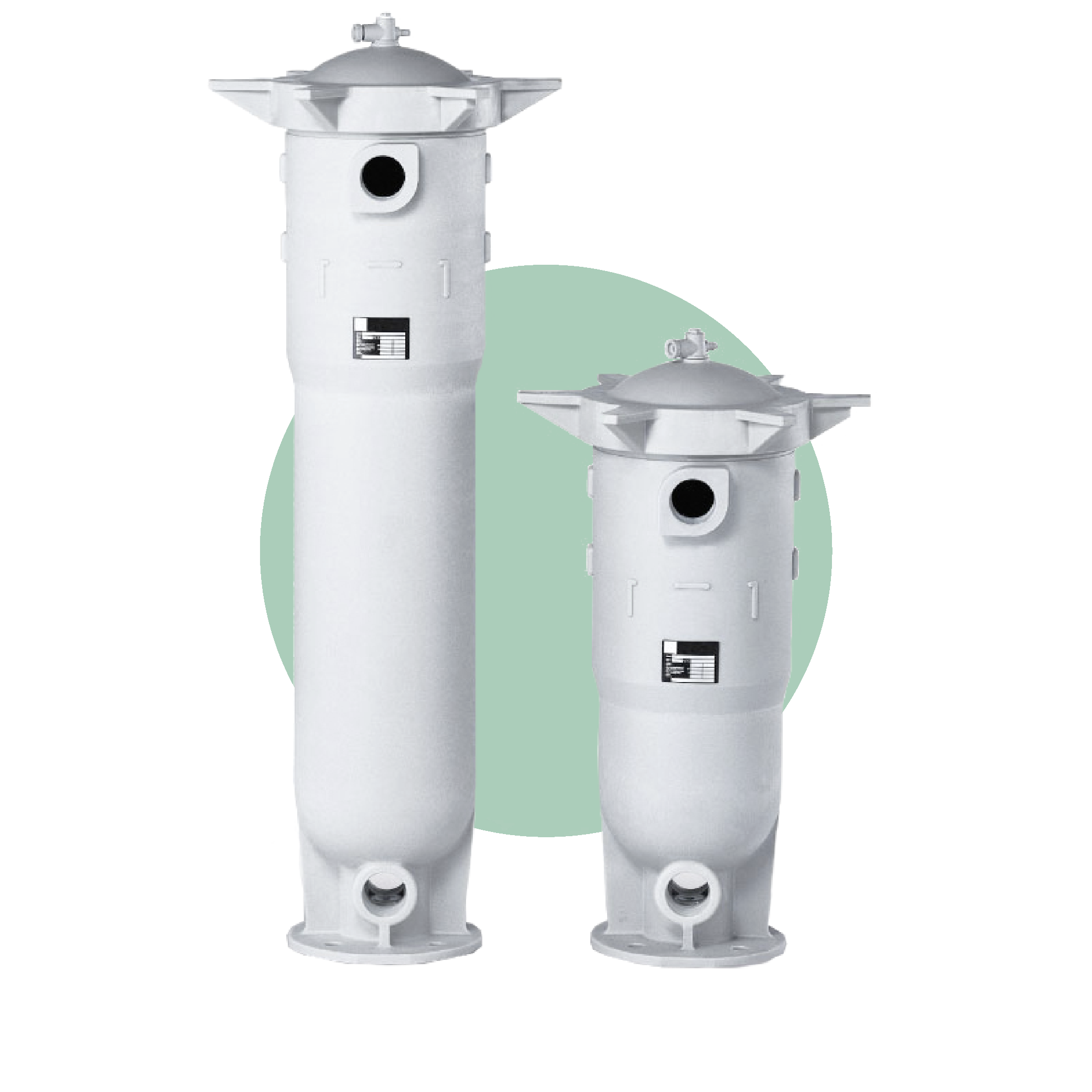

Plastic single bag filter housings

Casing materialFilter bag standard sizes 01 and 02

Polypropylene and PVDF
  Kunstoffbeutelfitergehäuse

Size
: Filter bag standard sizes 01 and 02

Optional connections
: Thread, flange









Accessories

  • Displacer body
  • Magnet inserts
  • Fitting and removal aids for bags
  • Special-purpose filter cages
  • Baseframe
