Filter cartridges

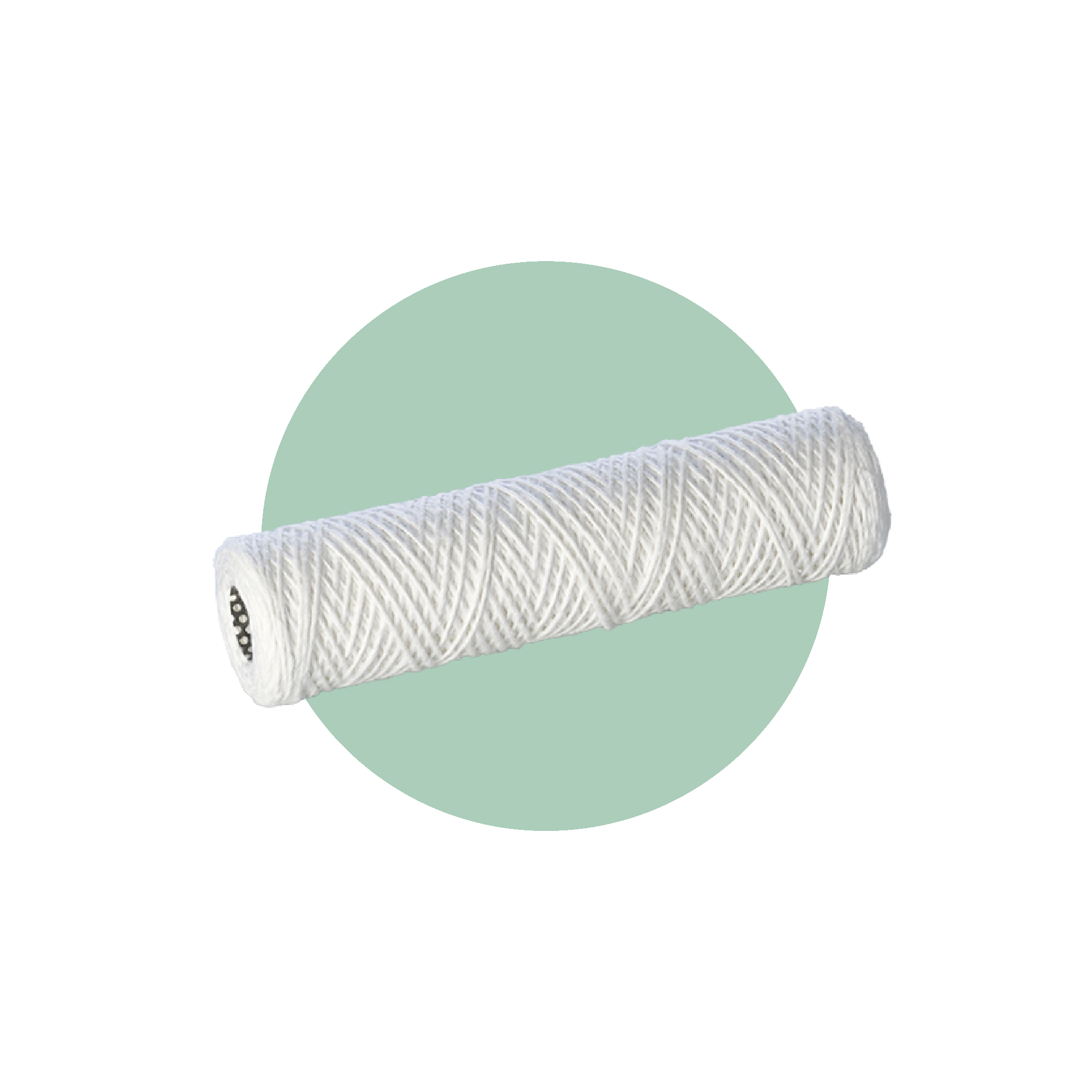

Depth filters made of polypropylene, fibreglass or cotton
Fineness: 0.5 – 150 µm (nominal degree of separation)
Example applications: electroplating baths, solvents, greases, chemical processes and process water conditioning

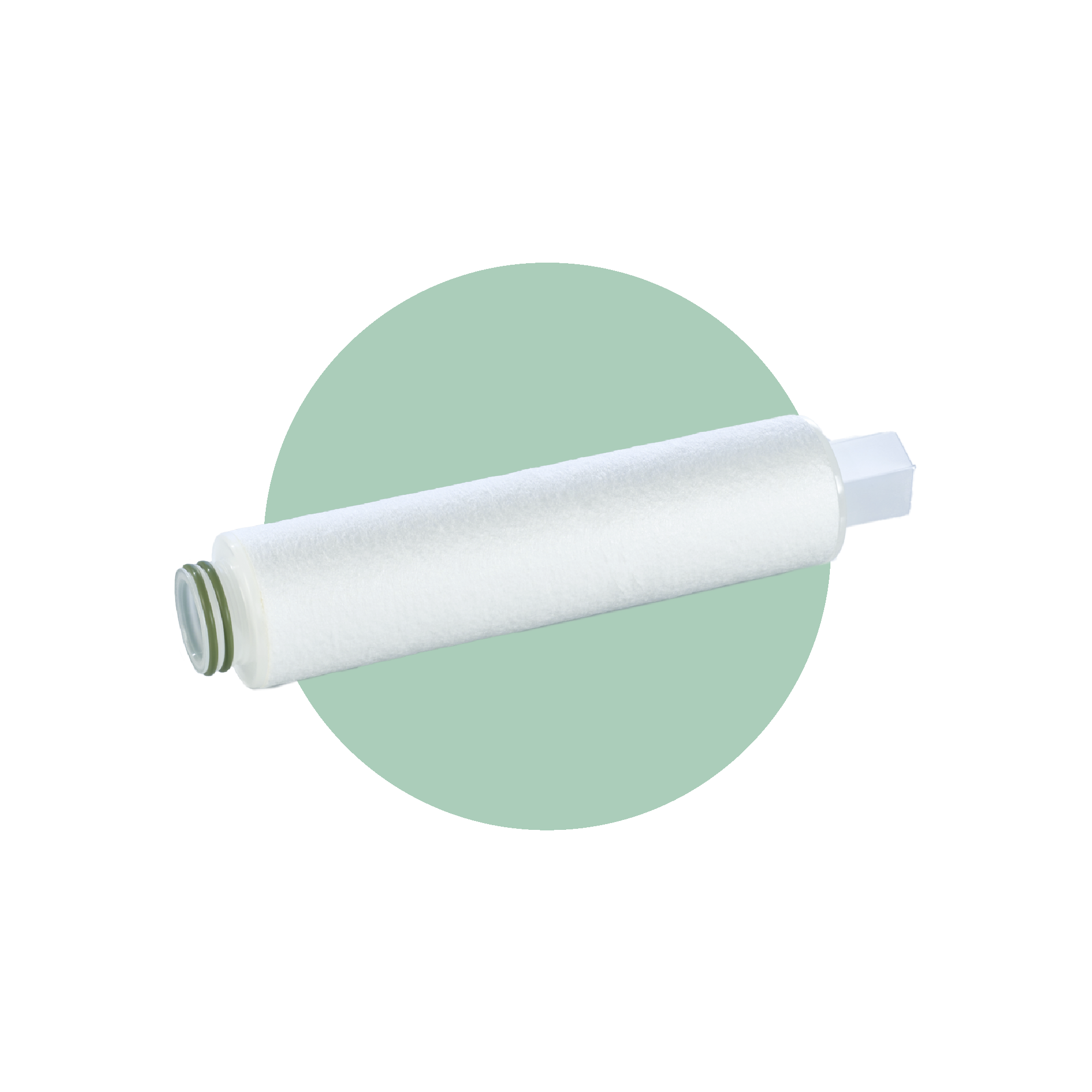

Thermally bound depth filters made of polypropylene or nylon (nylon 6.6) or PP/PE
Fineness: 0.5 – 100 µm (nominal and absolute degree of separation)
Example applications: beverages (prefiltration), ultra-pure water conditioning and reverse osmosis, electroplating, cosmetics

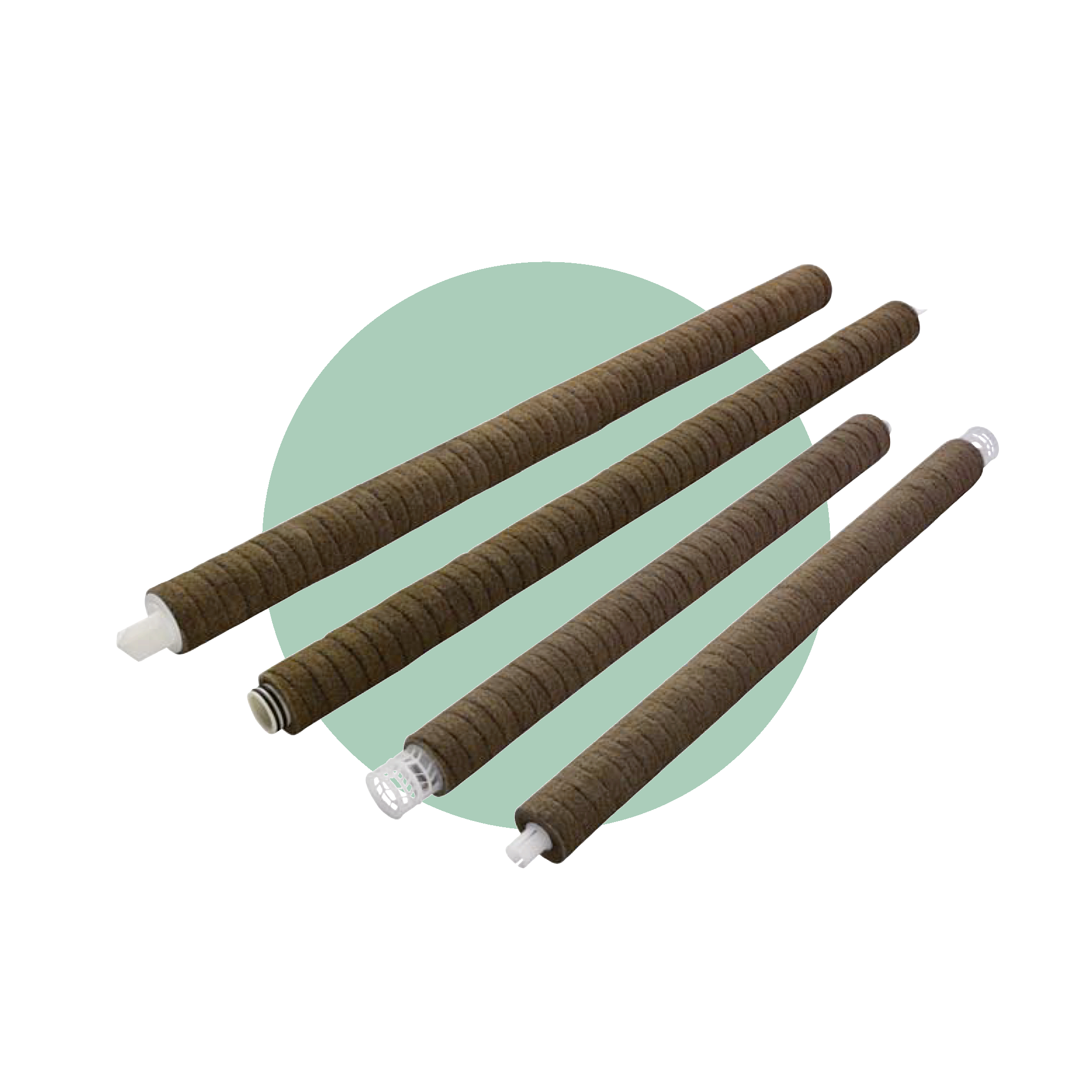

Depth filters made of acrylic fibres, bound with phenol resin
For high temperatures and chemical resistance
Fineness: 2 – 150 µm (nominal degree of separation)
Example applications: lacquers, paints, adhesives, resins, organic and animal oils and emulsions

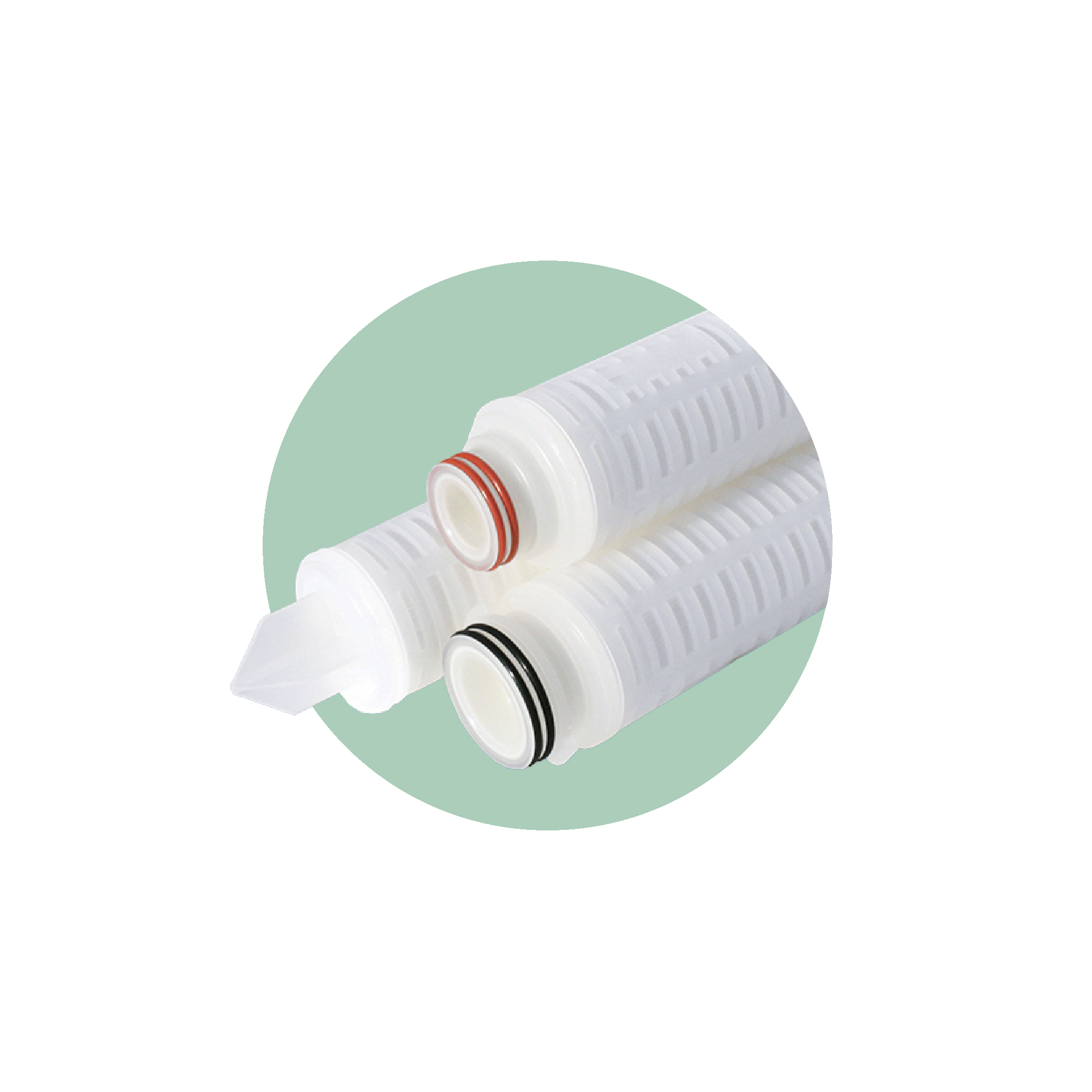

Pleated filters made of polypropylene, fibreglass or polyester
Fineness: 0.2 - 150 µm (nominal and absolute filtration performance)
Example applications: beverages and foodstuffs, cosmetics, reverse osmosis, process water, pharmaceuticals and chemicals

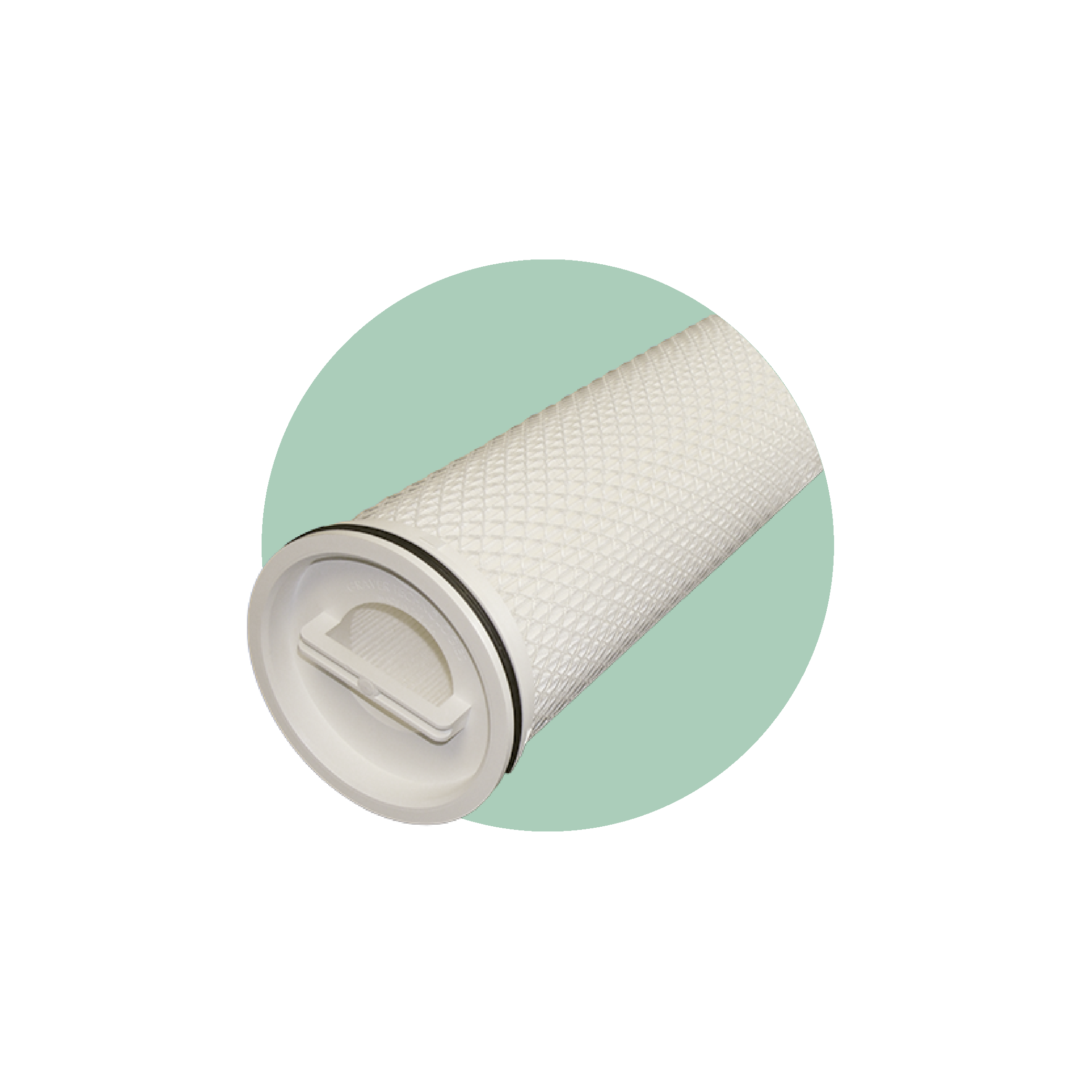

Pleated filter elements for high volumes, made of polypropylene and fibreglass. Can be used in bag filter casings.
Available in the following lengths 20“, 40“ and 60“ (filter areas from 2.2 to 26.8 m2)
Fineness: 1 – 100 µm (absolute degree of separation)
Example applications: water treatment, chemicals, beverages and foodstuffs

Screening elements (fabric mesh) made of nylon and stainless steel
Filter finenesses and lengths on request

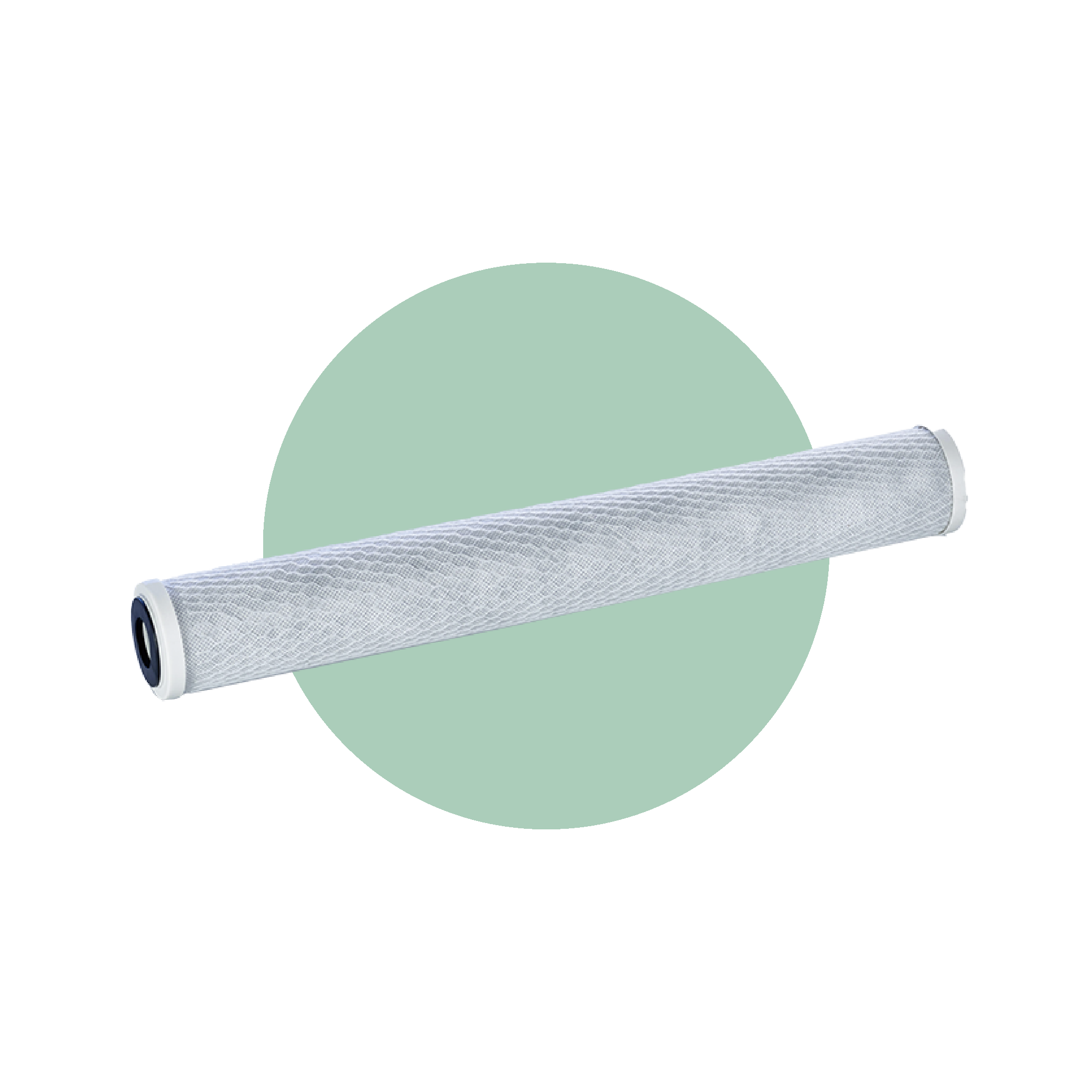

Various activated carbon filter elements for adsorption filtration
Compressed activated charcoal or in granulate form.

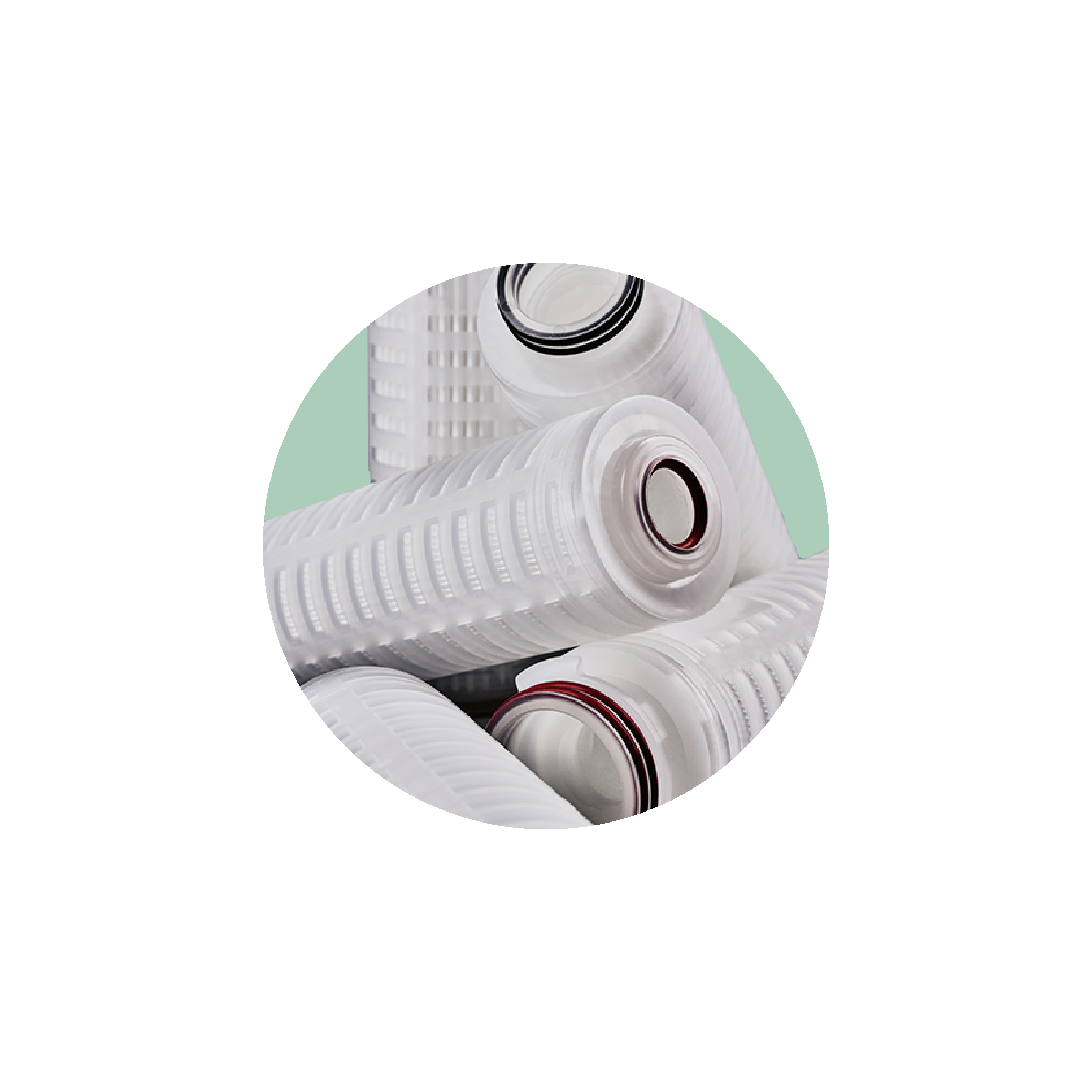

Material

PTFE, PFA, PVDF, ECTFE, Polyamid

Finenesses

0.1- 25 µm

Lengths

5 - 40"

Adapter

• DOE (open ends on both sides)
• 226 (Bayonet without point)
• 222 (Plug connection without tipz)

Examples of application

Water treatment, ozone, chemicals, solvent filtration, steam, etc.
